前提

数据采集，一般直接调用数据传输接口。当数据传输接口的调用过于复杂时，比如：请求参数多层或自定义加密等，这个时候不妨考虑基于第三方代理软件直接拦截传输的数据。

拦截传输的数据，完整流程：设置第三方代理、程序模拟人操作、输出第三方代理软件拦截的数据、解析并存储数据。本文的第三方代理软件为Charles，故以上流程基于Charles进行演示。

设置第三方代理

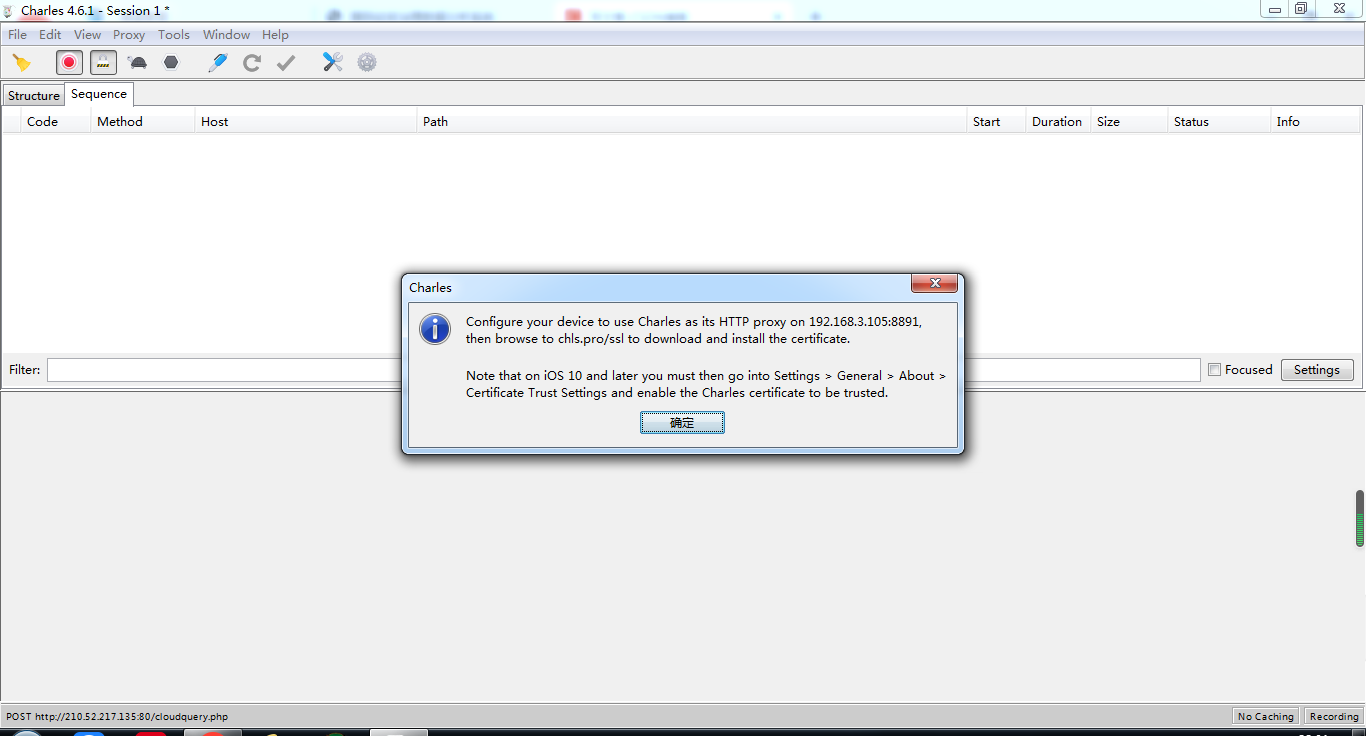

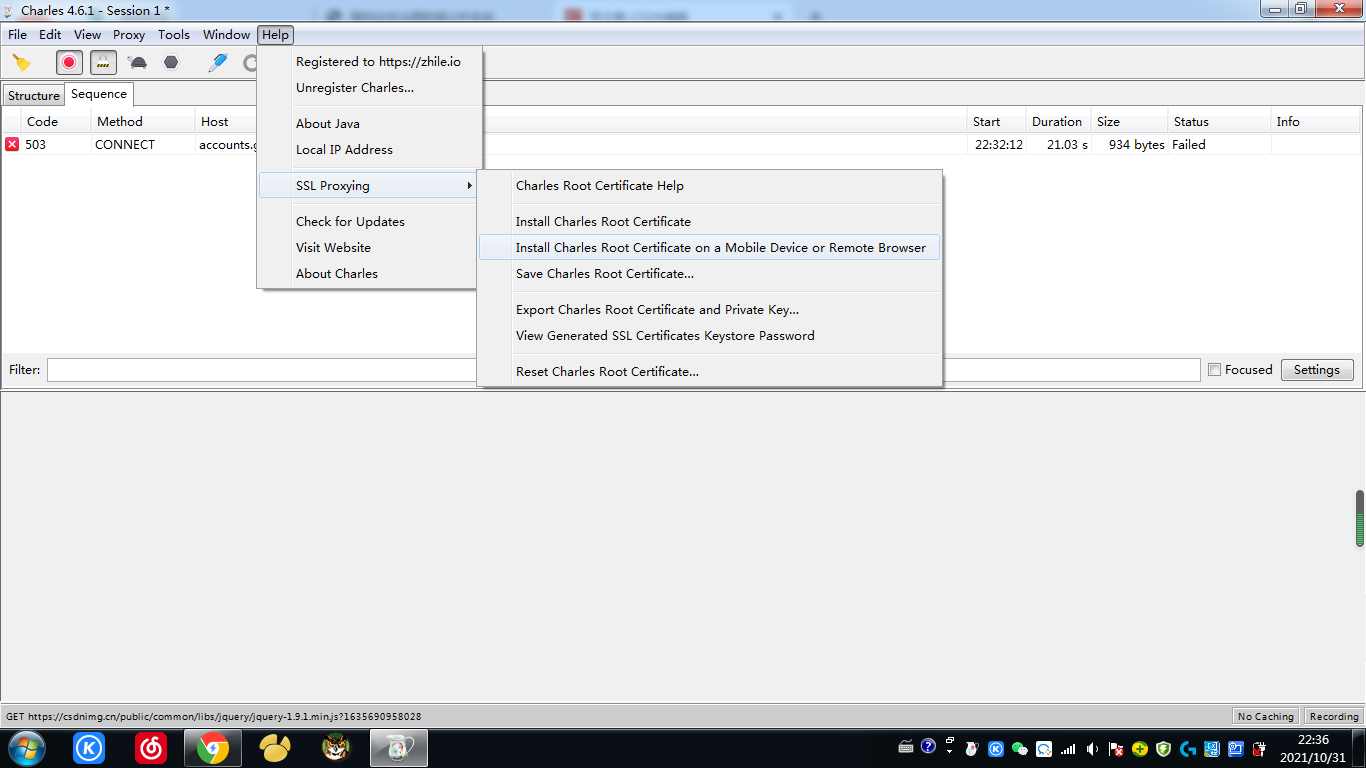

进入Charles主页面后，如下依次点击，查看代理的IP与监控的端口。

如果使用Selenium等模拟人操作网页，可忽略此步；如果使用Appium等模拟人操作手机APP页面，不可忽略此步。

模拟人操作

可使用Selenium等模拟人操作网页、使用Appium等模拟人操作手机APP页面等，此处不作累述。

输出第三方代理软件拦截的数据

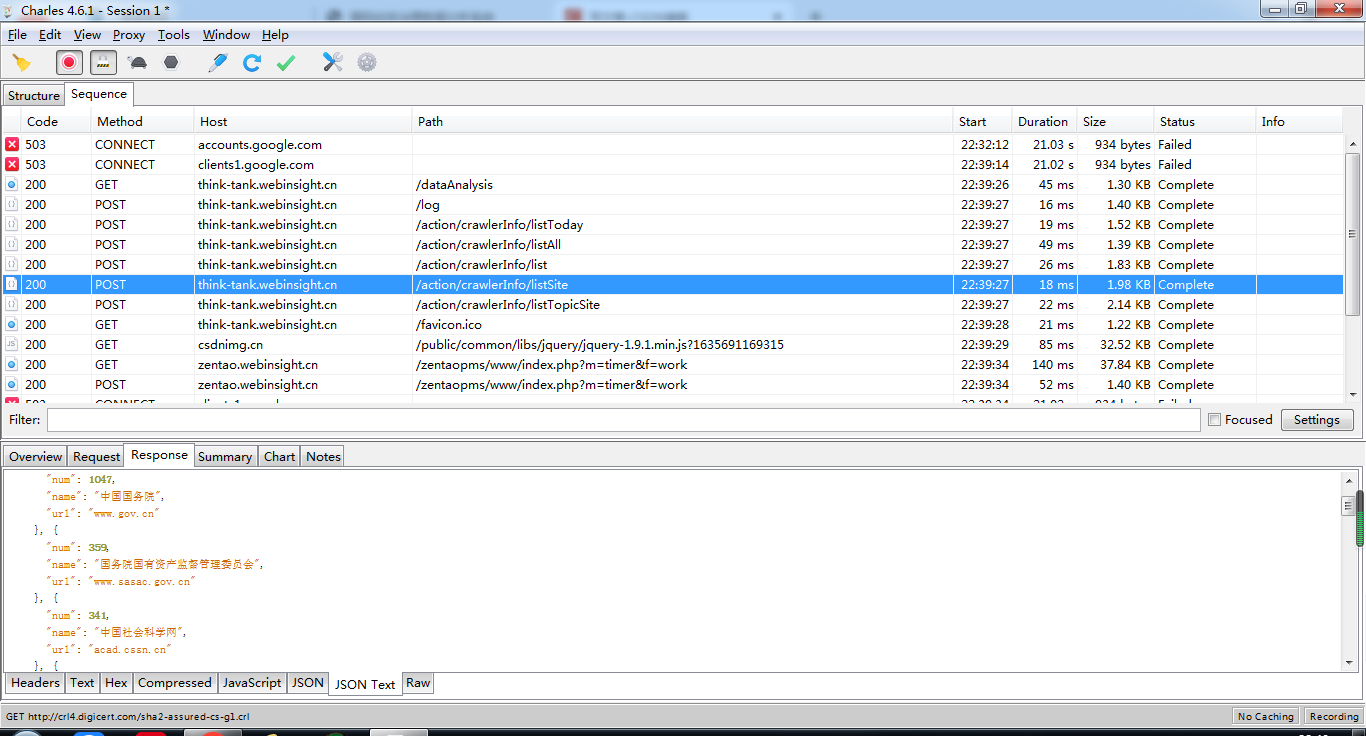

默认情况下，Charles会展示所有拦截的请求。

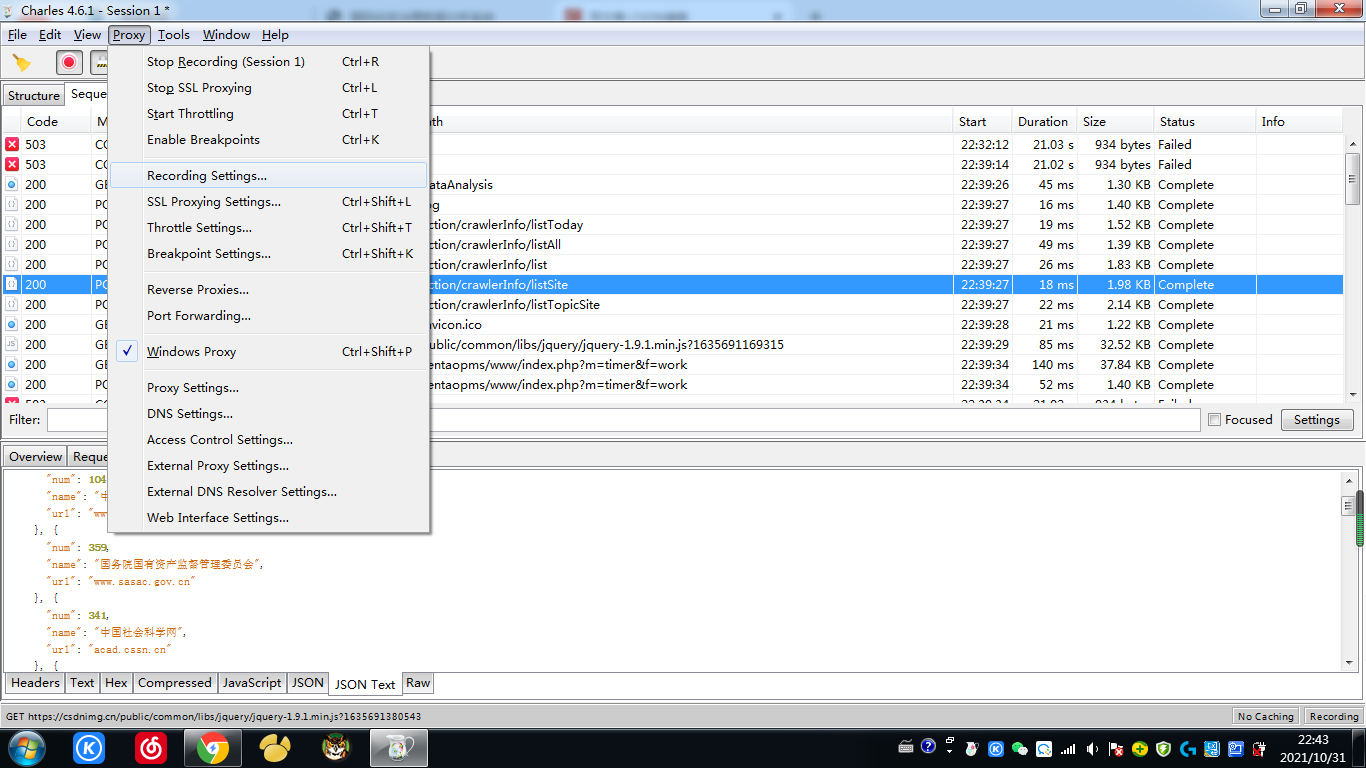

为方便查看数据接口且提高数据处理的性能，Charles提供请求过滤功能；可如下依次点击。

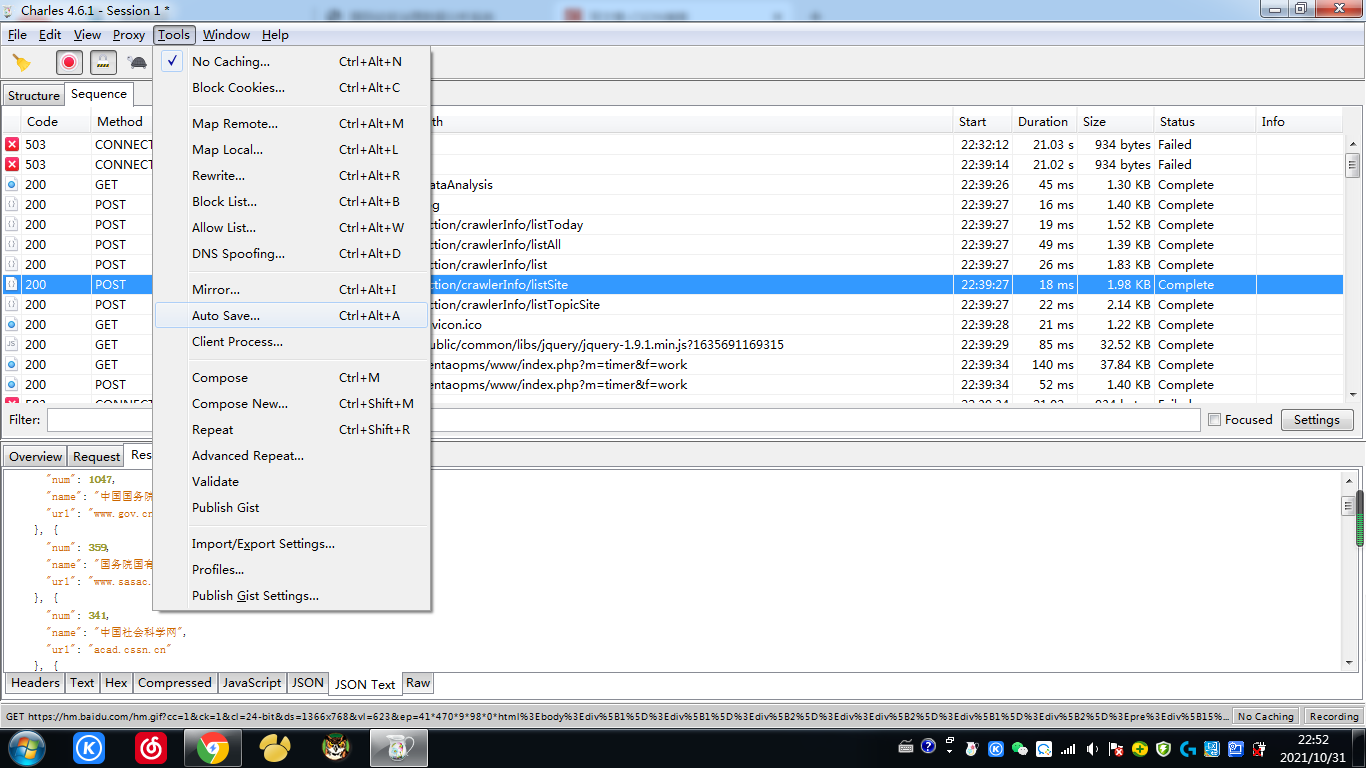

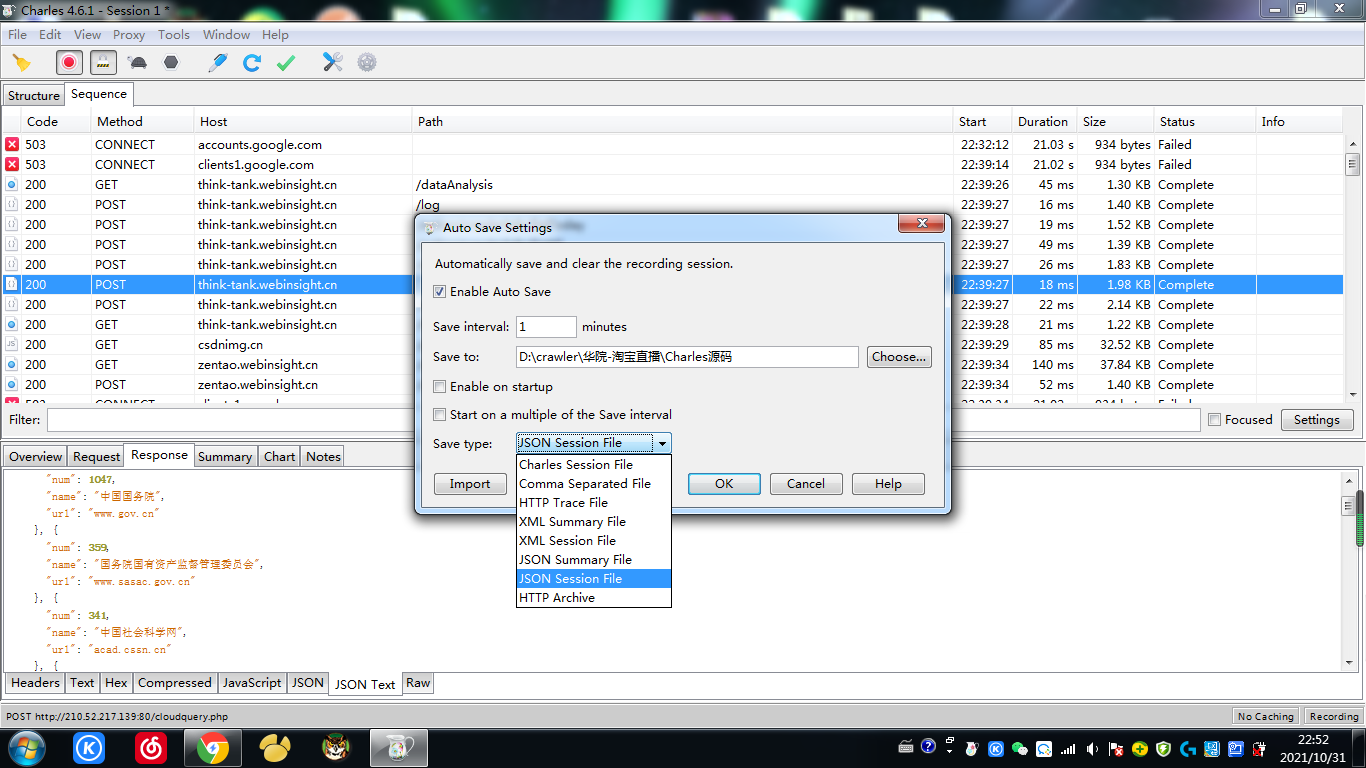

Charles提供分钟级的请求自动导出功能，可指定导出路径和导出文件的格式。

解析并存储数据

以“JSON Session File”为例，数据结构如下，可根据需要进行解析。

{
	"status": "COMPLETE",
	"method": "POST",
	"protocolVersion": "HTTP/1.1",
	"scheme": "http",
	"host": "210.52.217.135",
	"port": 80,
	"actualPort": 80,
	"path": "/cloudquery.php",
	"query": null,
	"tunnel": false,
	"keptAlive": false,
	"webSocket": false,
	"remoteAddress": "210.52.217.135/210.52.217.135",
	"clientAddress": "/127.0.0.1",
	"clientPort": 56166,
	"times": {
		"start": "2021-10-08T10:52:33.578+08:00",
		"requestBegin": "2021-10-08T10:52:33.586+08:00",
		"requestComplete": "2021-10-08T10:52:33.586+08:00",
		"responseBegin": "2021-10-08T10:52:33.653+08:00",
		"end": "2021-10-08T10:52:33.654+08:00"
	},
	"durations": {
		"total": 75,
		"dns": 0,
		"connect": 7,
		"ssl": null,
		"request": 0,
		"response": 1,
		"latency": 67
	},
	"speeds": {
		"overall": 31666,
		"request": 0,
		"response": 703000
	},
	"totalSize": 2375,
	"request": {
		"sizes": {
			"headers": 334,
			"body": 1338
		},
		"mimeType": "multipart/form-data",
		"charset": null,
		"contentEncoding": null,
		"header": {
			"firstLine": "POST /cloudquery.php HTTP/1.1",
			"headers": [{
				"name": "User-Agent",
				"value": "Post_Multipart"
			},
			{
				"name": "Host",
				"value": "210.52.217.135"
			},
			{
				"name": "Accept",
				"value": "*/*"
			},
			{
				"name": "Pragma",
				"value": "no-cache"
			},
			{
				"name": "X-360-Cloud-Security-Desc",
				"value": "Scan Suspicious File"
			},
			{
				"name": "x-360-ver",
				"value": "4"
			},
			{
				"name": "Content-Length",
				"value": "1338"
			},
			{
				"name": "Content-Type",
				"value": "multipart/form-data; boundary=----------------------------a692a93e79cd"
			},
			{
				"name": "Cache-Control",
				"value": "no-cache"
			},
			{
				"name": "Connection",
				"value": "keep-alive"
			}]
		},
		"body": {
			"encoding": "base64",
			"encoded": "LS0tLS0tLS0tLS0tLS0tLS0tLS0tLS0tLS0tLS0tYTY5MmE5M2U3OWNkDQpDb250ZW50LURpc3Bvc2l0aW9uOiBmb3JtLWRhdGE7IG5hbWU9Im0iDQoNCgoEBKhewAABAADyV+KtCjNgKSDLdD2n/exxS46lIe02XmWPBtkQboV5X4TJU6aG+w+FFIVzeF9becFANl9uXrdQYKkH9ET8uKHp5ra+045buG+IjRD4DdG1d0VeMeCUsQN3kNhteJuepNe59eftz7o+2beqmSPfsfd4Zw3eYqw+KH4FB8wcd4F7GmmMp2phzgaZE18GfH83byQWMhWSKMQziED9DDiie/m4clnY9gnmiFcIZC5Wm//n+Ck3o5xQjHqB1Jd6c2rPHR1gGPVk3JNBCXiuWGB5e/OpvwWpBlze3ICJQ3X0yDR18xPrKXdqOqP/CKGu3EkSj5OzY0eHdoSHLddiglYr1Htfn8WXVKfQQIS3v3K4s+ZXB5ffuoq5X67msU55yyHZgqRejf0XpcJ3iiW1VldoDUDCxog1NS95o5zhCk+IUstm59AuK9WWhmax0QaQ3dQMPSIz2PiTSYbYrIpOh+3sOBd77MMZmxD2OAziybPoWT79XmxsFrwL/dI2bBUvZ0Ve19AHlTMdUYYyFPkbYzvMoAAHbZOKRn4Tvp8C1G5e5Qosw4ccY+Mv+214cOdAdA3x/nDvOQxs9DQW1wCfKY38vmYawbLT2myNk7aKYNXUu6fLbZEapDOMJxTu3d9rcY+fE8rogbYIrDR45nky+7Lpvv8mJ//GLpCQjeW4oSF7Boywe4rwi/hfroLinaorR6EpN1E63+Y1eYgjqkVh2fe9AB4EEnhhWimx0xE6/c15SpnNNXr+3LyZqKv38E8jo9qVw7sqEAzG1lKzZRqcFeovJntqDgMoy1DTgRfomYpV4bOWVIh8636e1YwJvc5iXaZ7n/a2yhgMsVqxXyblNHWOH82bR4aDyS31F3pdk6MD2WXtTkiSjfNyaZ2stuWGlgnz2t+YVZJ4xxS3/ePjrCMY3lg29+3az/WdvS9E/5qo6poIWmgSnkE1UjDMO5UBvq0RDeVbW9XVzpKy7tVpScjTrGBPKehMwQf0+aS9Hy/NkSblmciUuIUp2aGcINRIjrrILtiYUd/POE3PBFzIxzKlc2MySKBNcMlgZmjGpTeoG/NiK4R9Z4yxkPyPvC9bCelTftEkY2KFzJtcZfXI/IujqA6X0CNeSiQlQVl1rA2EpKMLqlviQZ7m95GgqCI0YJWDaTxd8zsYbsCbAxK38psabThfbCWmcHMUjiHQbJJtw7F4+/KaRnzm+L18lmHYeY55dnZroPsOR24rRZtXTbBjlLRg2QWnkzVtlhGao/wXJVAz03LFmMTX+YiHioCou4ShnW/DaMfayhZctY93Gd5PWk3lpCk4UEPo7pJtbXXsVJu0jxzPxlk1uCfbTPz9q61dEX1QKSjdkUYtLzHM5sCx2vTEQ2FEVAVPSgOwXMJyWD1V4BLcMr3zKVnR35wg/TB7qWgNjpavEn6L5QYr/RNPHvSL7QK+Ndp29daGABr9fbEJQjTlR6NmmY8BQaET5mfB2F8+F39OZfRRACXKr7rwoeXkv7IWdMs2hN/JxJ+QpCUHhh0Zb3RmrXAVyBA4zRBosaiB6mGMQz9DLapGWmlQNXWl5kpSHZxNKWz3uRuRU/uyavpx0aHUYHFcDQotLS0tLS0tLS0tLS0tLS0tLS0tLS0tLS0tLS0tLS1hNjkyYTkzZTc5Y2QtLQ0K"
		}
	},
	"response": {
		"status": 200,
		"sizes": {
			"headers": 236,
			"body": 467
		},
		"mimeType": "application/octet-stream",
		"charset": null,
		"contentEncoding": null,
		"header": {
			"firstLine": "HTTP/1.1 200 OK",
			"headers": [{
				"name": "Server",
				"value": "nginx"
			},
			{
				"name": "Date",
				"value": "Fri, 08 Oct 2021 02:52:15 GMT"
			},
			{
				"name": "Content-Type",
				"value": "application/octet-stream"
			},
			{
				"name": "Transfer-Encoding",
				"value": "chunked"
			},
			{
				"name": "Cache-Control",
				"value": "no-cache"
			},
			{
				"name": "pragma",
				"value": "no-cache"
			},
			{
				"name": "Expires",
				"value": "0"
			},
			{
				"name": "Proxy-Connection",
				"value": "close"
			}]
		},
		"body": {
			"encoding": "base64",
			"encoded": "CgQBv17AAAEAABECUEFJrq6Td0kAiSrClNUoidc4a+3QyOM0gJi/48D8GBcYMa4/lcmPwdvJcPivJ/RwB8yroOFPbPDvng/24w9uNMgyzdFPhkPbmC02tznpo4YqBpsHnzz/UqcLoQahAPFVpw73D6sGp1OlVasA8wb2BKsOpQ/3BasDogW5UqEOplOrUKYGpQSnBKMHp1WjAqRQ9gSkB/AH9geqAqdV9wWiVacApT+jBrwFoD+iP6I/oj+gA5sDmz+bZtp45Gz8ZOhV/3u5VaB/pHvGd6N71mejePhV6lDaTuhv/wKkA95P0APeX/MD8ADnA94d+mbRD+hUoGyiVaF8+Gb1C68/mwabBps8qlOkA/cGoQWlD6tT8A/0UqYA8FWnVaMOplOlUqNUqgO5U6NV8QOhB6FU9wf0AfZQplWmBaQPpVCqUKUGowWiA6cOp1D3AvcBoz+jBrwGmwabBpsGmweiBKs/pT+bP8Jw1GHGYqdhxHDAT/Zu3AbDYMh59mGiAN9y5UDHYMh4wlzqWfNu0EzCXadzx3DYZsRzq2LdXNQO9HOnc8MG1GPdWNxBygTURfBy5UDzcf5B8UymC5s/oj+iP5g7mA=="
		}
	}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144

补充

拦截的请求里除了数据外，还有Url、请求头、请求体等。有些网站Cookie、Session等爬虫资源更新的频率较低时，该方案可用作相应的爬虫资源的更新。
